Launch SmartLink B V2.0 Remote Diagnostic Device Vehicle Data Link Connector

Descrizione del prodotto

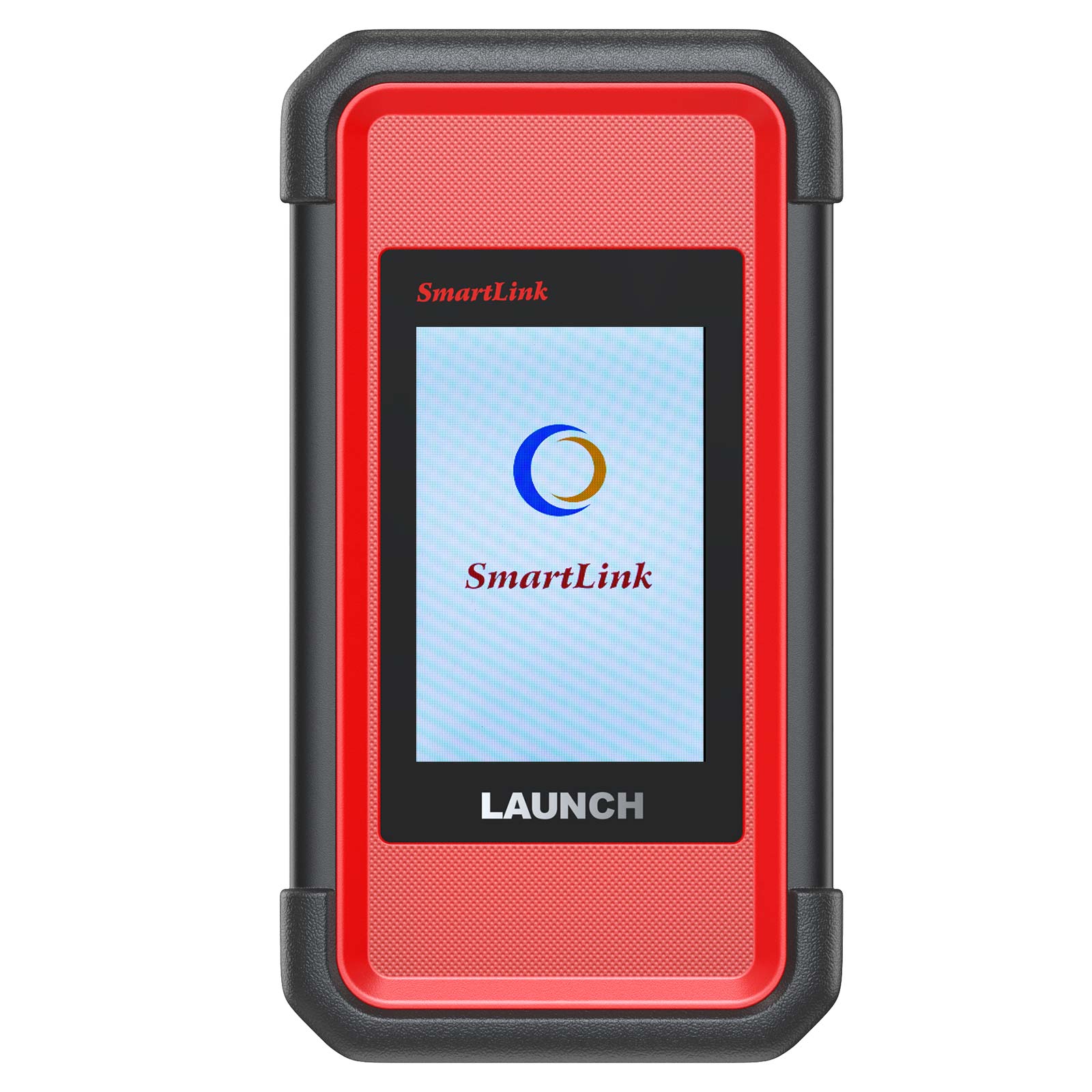

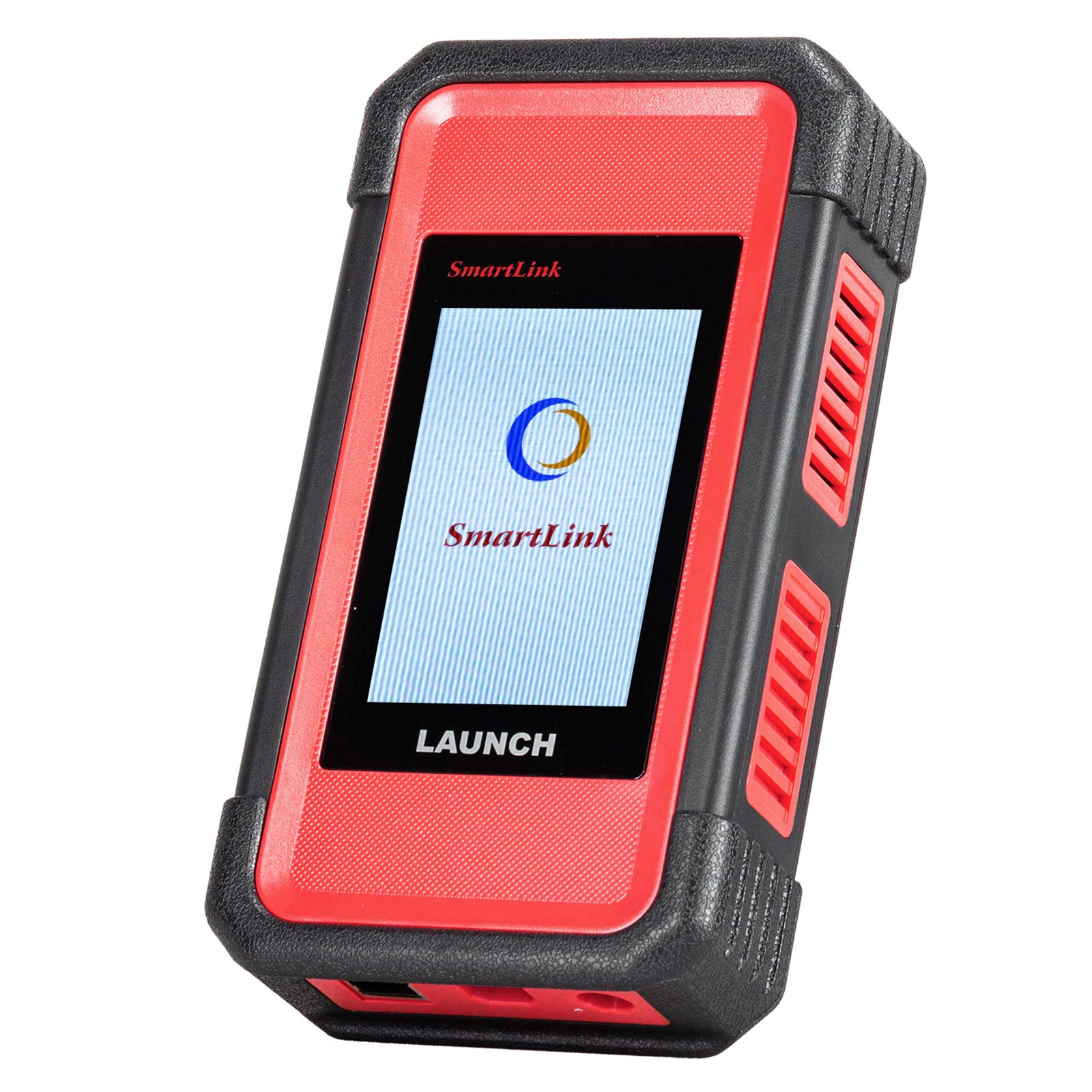

Launch SmartLink B V2.0 Remote Diagnostic Device


The SmartLink Remote Diagnostics System is a newly developed powerful service system dedicated to remote vehicle diagnosis and service. In this system, SmartLink B (Business), as a SmartLink Service Provider, can accept remote repair orders issued by SmartLink C users via SmartLink Service Platform. The SmartLink B applies to vehicles that comply with CAN/ DoIP/ CAN FD/ J2534 diagnostic protocol standard.

The SmartLink B system consists of the following two parts:

• SmartLink Service Platform – For binding the SmartLink B dongles and accepting the remote repair orders.
• SmartLink B Dongle – Works with the compatible diagnostic tool to perform diagnosis of the vehicle connected to the SmartLink C dongle.



Launch X431 SmartLink B Features

1. Compatible with LAUNCH tools, OE tools or any other diagnostic tools
2. SmartLink can be used not only remote diagnosis but also local diagnosis by working with LAUNCH intelligent diagnostics
3. Support more advanced protocols like J2534, DoIP, CAN FD, CAN 2.0, RP1210, D-PDU
4. Publish request and accept offer from Launch Super Remote Diagnosis Reservation Platform

SRDs SmartLink:

Super Remote Diagnosis Solution:

SRDs is comprised of SmartLink C, SmartLink B and Cloud Platform.

The SmartLink C can be connected to the vehicle, and the SmartLink B can be connected with any diagnostic device.

The remote diagnosis will be carried out on the SmartLink platform.

Click on the link to be redirected to Launch SmartLink C for more info.

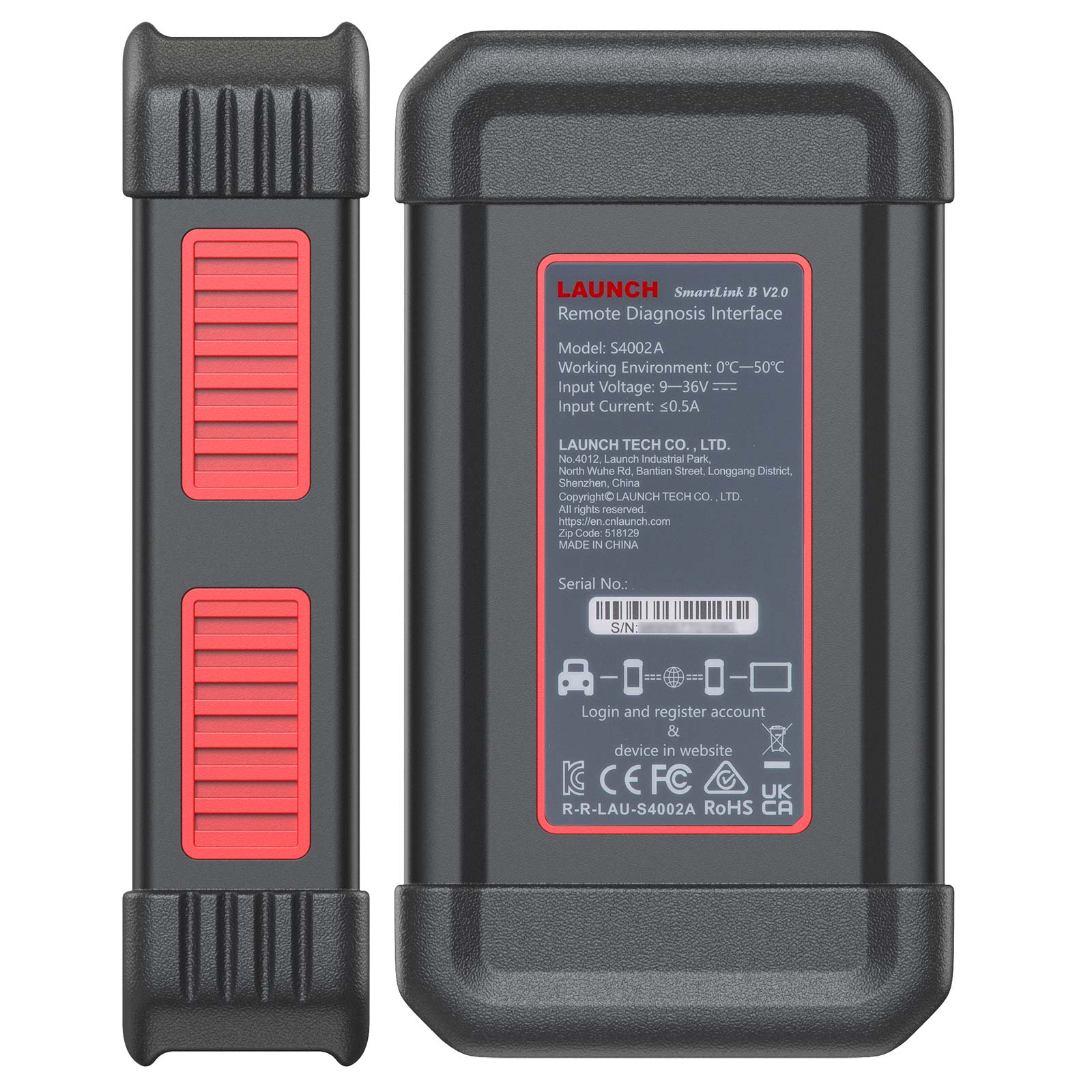

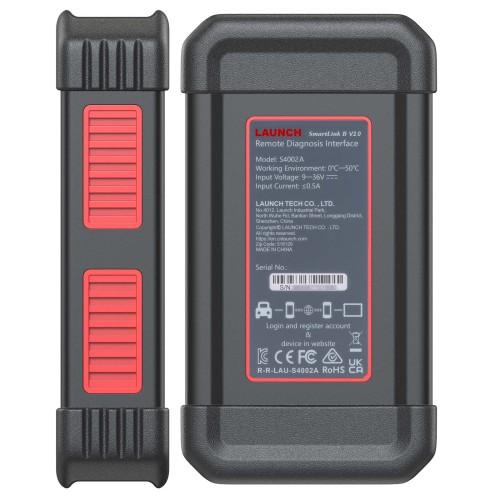

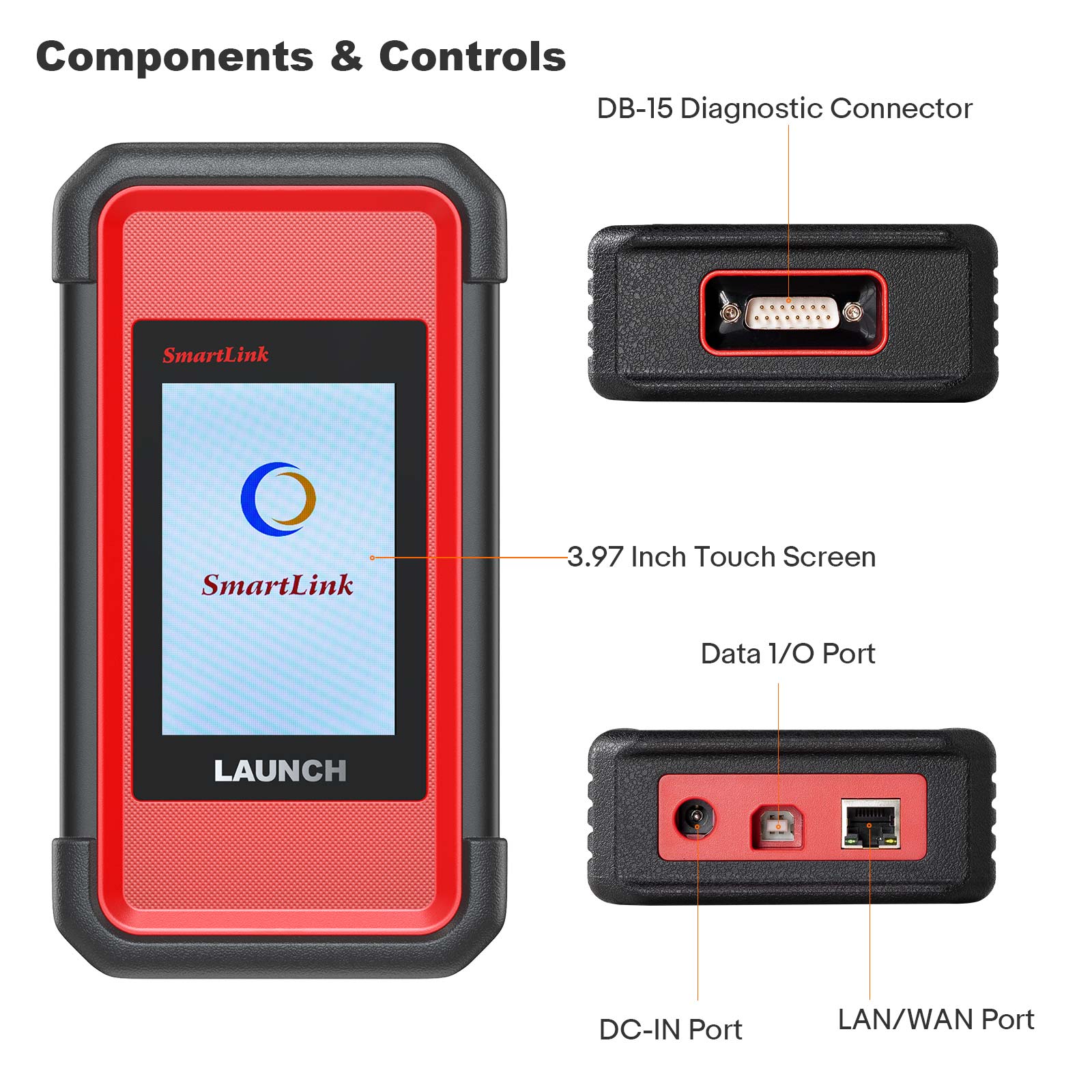

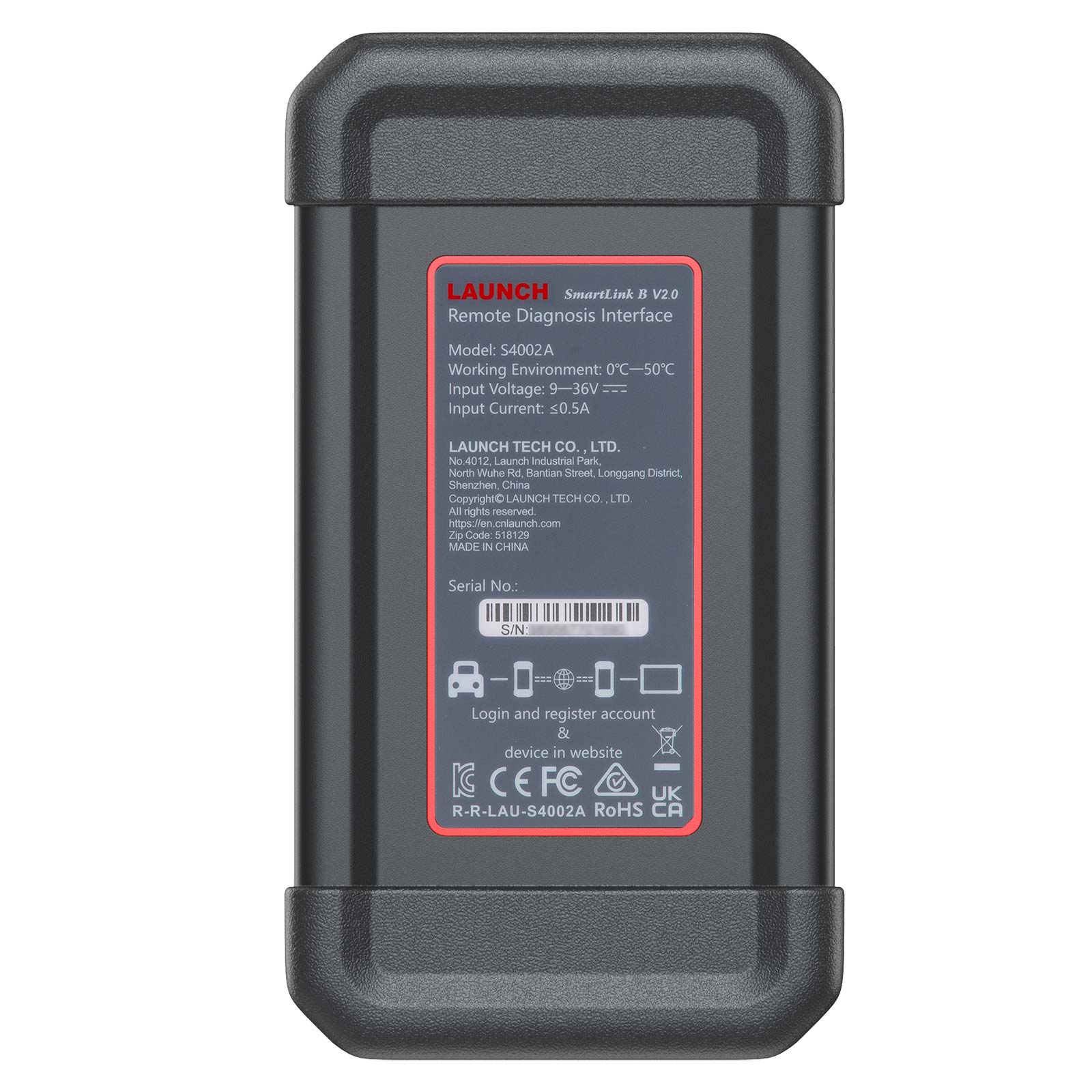

Launch X431 SmartLink B Technical Parameters

• 3.97“ Single-Touch Screen, 320 x 480
• Working Voltage: DC 9V ~ 36V
• Communication method: Ethernet
• Type B USB 2.0
• Storage: 8GB
• Memory: 256M
• Power Consumption: < 6W
• Working temperature: -10°C ~ 50°C
• Storage temperature: -20°C ~ 60°C
• Storage humidity: 10% ~ 90%
• Dimension: 204 x 110 x 45 mm

Launch X431 SmartLink B Service Platform:

SmartLink Platform is used to pair the connection between SmartLink C and SmartLink B operated with the internet browser.

SmartLink C user can post the remote diagnosis request on this platform. SmartLink B user can see the requests from their clients and accept the request to do the remote diagnosis.



Launch X431 SmartLink B Management Modes:

The service provider can select ONE of the two Management Modes:

The service provider manages the Smartlink C account status of the customer.

The service provider can activate the Smartlink C under his own account and manage the Smartlink C (post remote diagnosis request, license renewal) for the customer.

The customer doesn’t need to do anything on the platform, he just needs to contact the service provider and connect the Smartlink C hardware to the vehicle.

The customer manages the Smartlink C account status himself.

The customer can register his own user account on the SRDs platform and manage the Smartlink C (post remote diagnosis request, license renewal) himself.

The service provider can “Pre-bind” the customer’s Smartlink C, after “Pre-bind”, the customer’s request can only be seen by this service provider. No worry about other provider taking the customer.

NOTE: Each Smartlink can be activated only in one account.

How Does the LAUNCH SMARTLINK REMOTE DIAGNOSIS WORK?
This picture may help you better understand the complete procedure of the Smartlink remote diagnosis.

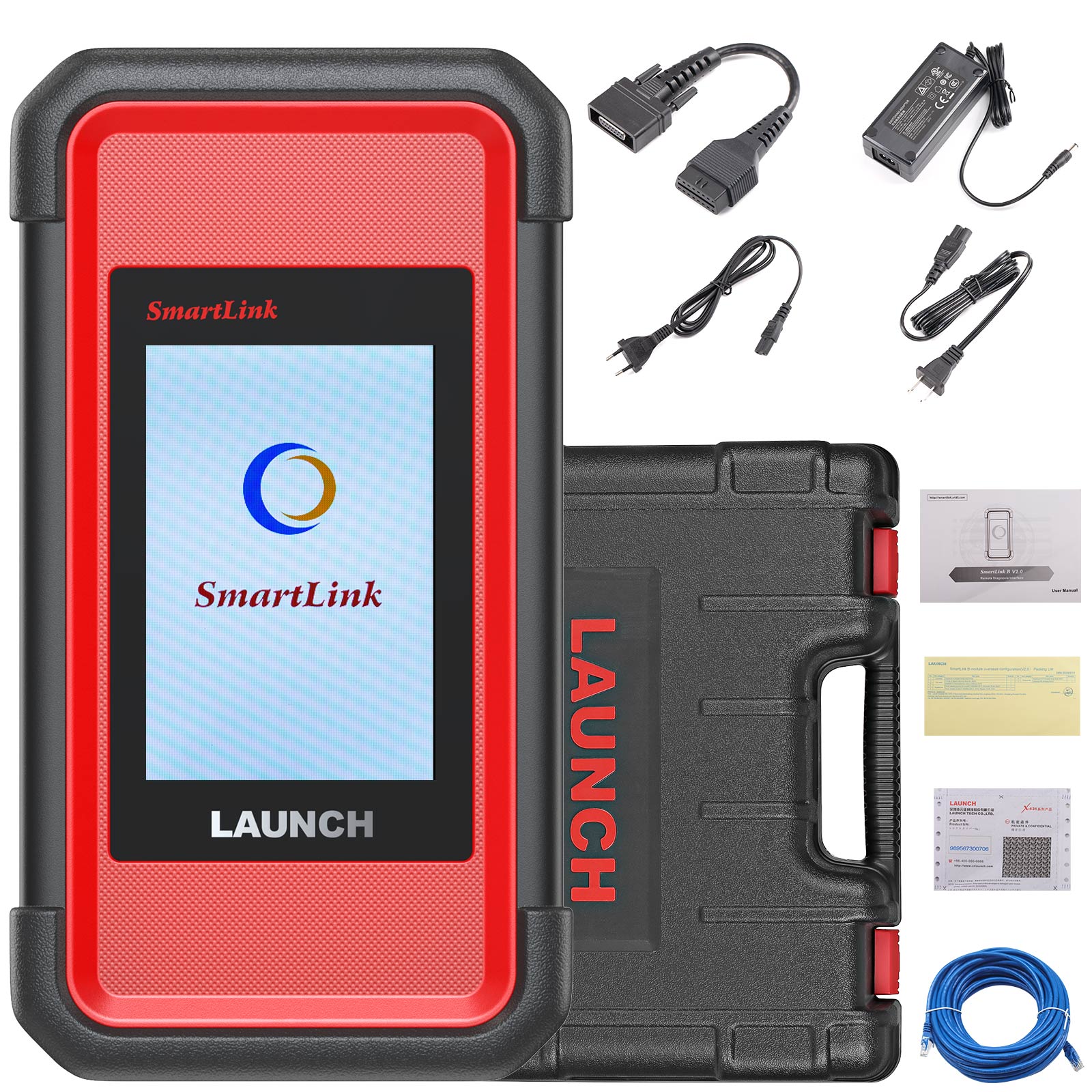

Launch X431 SmartLink B Packing List:

The following accessory items are for reference only. For detailed items, please consult with a local agency or check the packing list supplied with the device.

• SmartLink B Dongle – For SmartLink Service Subscriber
• OBD II Extension Cable – Connects the dongle to the vehicle’s DLC port
• CAT-6 Crossover Cable – Connects the dongle to the network modem
• Data Cable – Connects the dongle to the PC via the data cable when as a J2534 PassThru device.



---
